Inserta Tee Parallel Spacing

Filename:
Inserta Tee Parallel Spacing.pdf

Inserta Tee Parallel Spacing

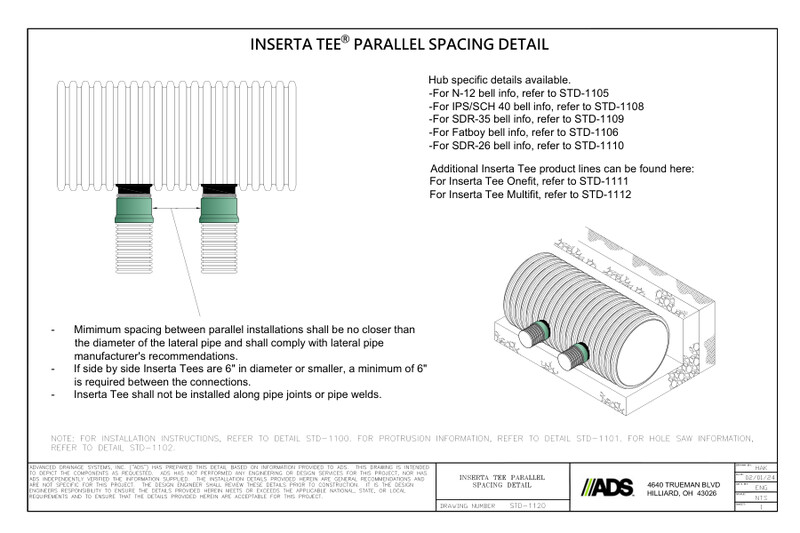

This document explains Inserta Tee Parallel Spacing. A detail of the Inserta Tee, hub and spacing discussed.

For Inserta Tee spacing minimum spacing between parallel installations shall be no closer than the diameter of the lateral pipe and shall comply with lateral pipe per manufacturer's recommendations. If side by side Inserta Tees are 6" in diameter or smaller, a minimum of 6" is required between the connections. Inserta Tee shall not be installed along pipe joints or pipe welds. A detail is provided.

Hub specific details available:

-For N-12 bell info, refer to STD-1105

-For IPS/SCH 40 bell info, refer to STD-1108

-For SDR-35 bell info, refer to STD-1109

-For Fatboy bell info, refer to STD-1106

-For SDR-26 bell info, refer to STD-1110

Additional Inserta Tee product lines can be found here:

For Inserta Tee Onefit, refer to STD-1111

For Inserta Tee Multifit, refer to STD-111
