15" X 12" - 36" X 18" 45º Wyes - Plain End (HP Storm Wyes Fittings Manual)

Filename:
15" X 12" - 36" X 18" 45º Wyes - Plain End (HP Storm Wyes Fittings Manual).pdf

15" X 12" - 36" X 18" 45º Wyes - Plain End (HP Storm Wyes Fittings Manual)

This document is the 15" x 12"-36” x 18” 45º Wyes – Plain End (HP Storm Wyes Fittings Manual). Diagram with table provided.

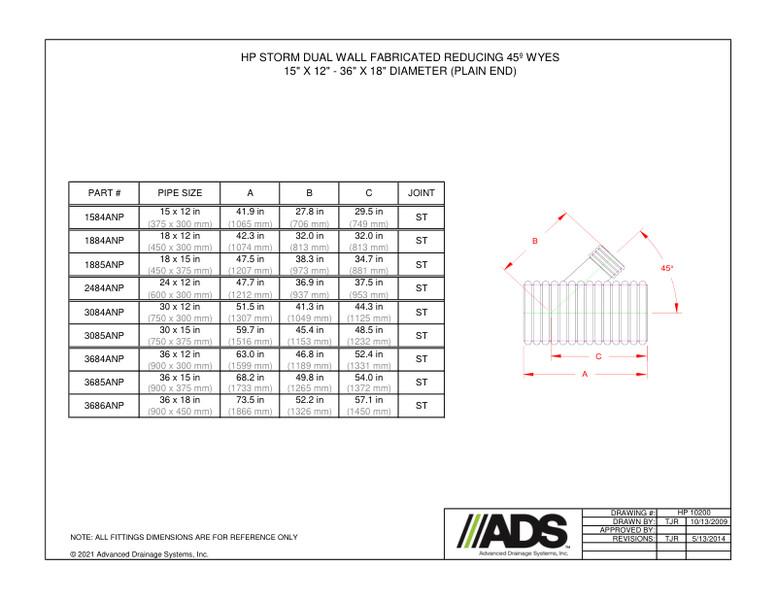

The diagram of the HP Storm Dual Wall Fabricated Reducing 45º Wyes 15" x 12"-36” x 18” 45º Wyes – (Plain End) with A/B/C dimensions and 45 degree arc.

A table with part number, pipe size and A/B/C/Joint dimensions is provided.

All fittings dimensions are for reference only.
