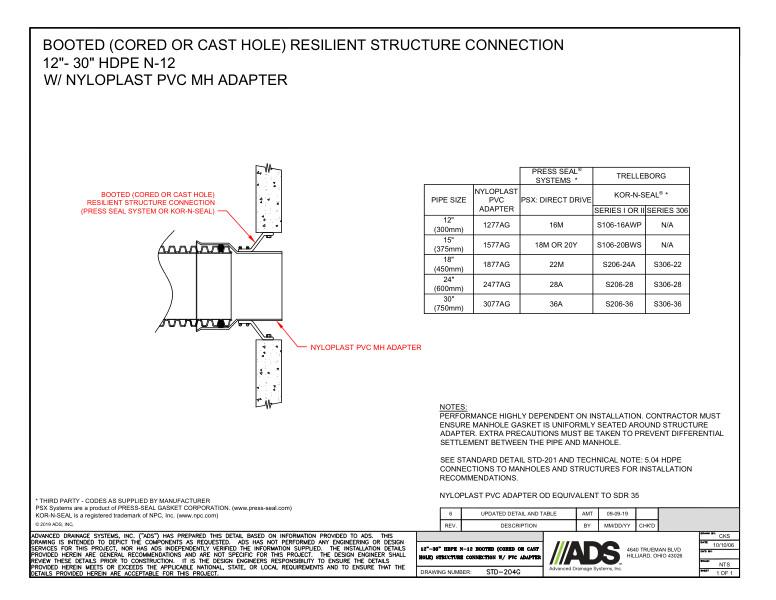

This document is the Booted (Cored or Cast-Hole) Resilient Structure Connection 12”-30” HDPE N-12 with Nyloplast PVC MH Adapter. Diagram with table provided.

The diagram of the Booted (Cored or Cast-Hole) Resilient Structure Connection 12”-30” HDPE N-12 with Nyloplast PVC MH Adapter shows the booted (Cored or Cast-Hole) resilient structure connection (Press Seal system or Kor-N-Seal) and nyloplast PVC MH adapter.

The table lists the values for pipe size, nyloplast PVC adapter Press Seal Systems/PSX: Direct Drive and Trelleborg/Kor-N-Seal Series I or II and Series 306.

Notes state that performance dependent on installation. Ensure that manhole gasket is uniformly seated around structure adapter to prevent differential settlement between the pipe and manhole. See standard detail STD-201 and technical note 5.04 connections to manholes and structures for installation recommendations. Nyloplast PVC Adapter OD equivalent to SDR 35.
