12 x 4 HP Tee Wye with Gasketed SWR Bell Nyloplast Detail
Filename:
12 x 4 HP Tee Wye with Gasketed SWR Bell Nyloplast Detail.dwg

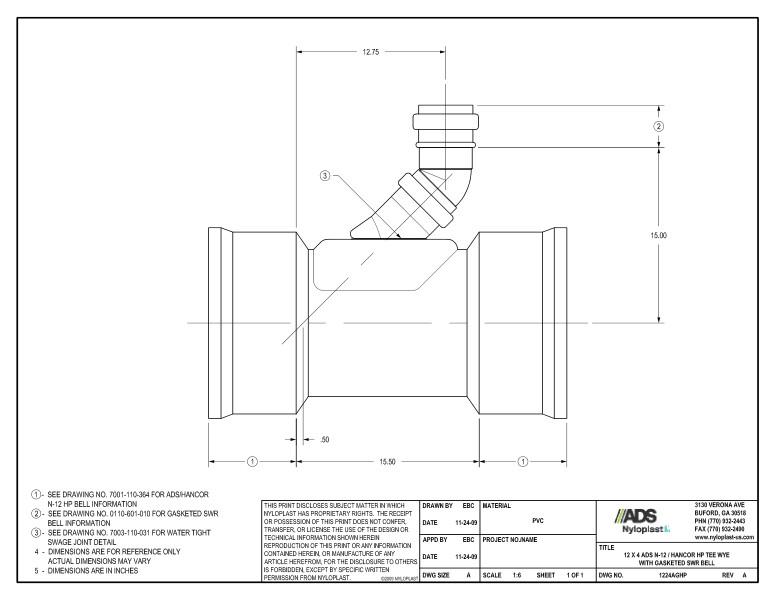

This document is the 12 x 4 Tee Wye with Gasketed SWR Bell Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references ADS/Hancor N-12 Bell for more information. A note on dimension 2 references Gasketed SWR Bell for more information. Note 3 directs to see drawing for water tight SWAGE joint detail. Note 4 states that dimensions are for reference only. Note 5 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
