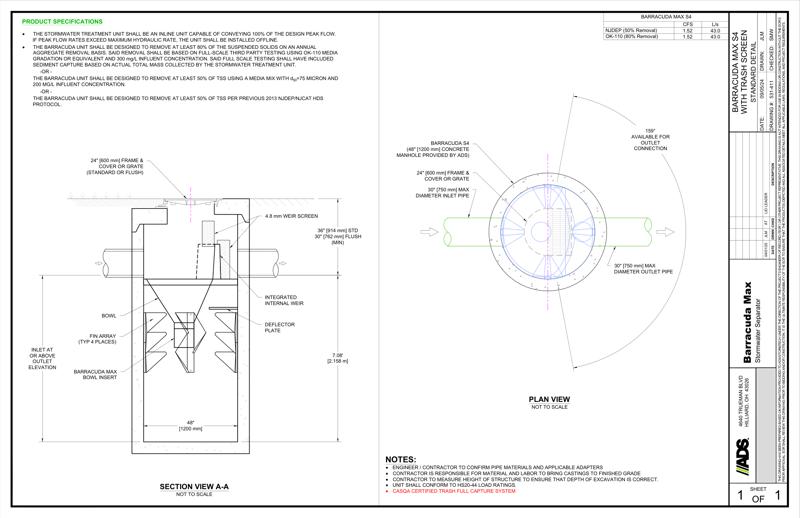

This document is the Barracuda Max S4 Trash Capture Detail. Product specifications, plan view with dimensions provided.

The stormwater treatment unit shall be an inline unit capable of conveying 100% of the design peak flow. It will remove 80% of the suspended solids on an average aggregate removal basis. A section view shows the components of the system. The plan view shows the Barracuda S4 HP manhole, inlet pipe, outlet pipe and flat top solid lid or grate.

5 notes with additional information provided.
