18" Pedestrian Locking Grate Assembly Nyloplast Detail
Filename:
18" Pedestrian Locking Grate Assembly Nyloplast Detail .dwg
![18" Pedestrian Locking Grate Assembly Nyloplast Detail](https://assets.adspipe.com/m/3c38c6742196826a/webimage-18-Pedestrian-Locking-Grate-Assembly-Nyloplast-Detail.jpg)
This document is the 18" Pedestrian Locking Grate Assembly Nyloplast Detail. It shows illustrations with descriptions.

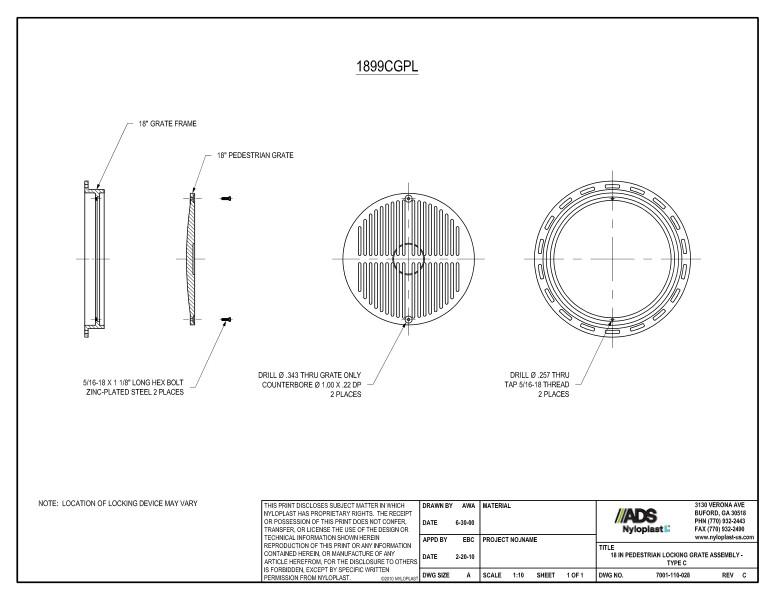

The side view illustrations show the 18” grate frame & 18” Pedestrian cover with 5/16-18 x 1 1/8” long hex bolt zinc-plated steel in 2 places. The top down view shows the grate with drill thru position and the frame drill thru thread position.
A note states that the location of locking device may vary.
