STD-1112A Inserta Tee® Fittings ADS N-12 Multifit Connections Detail
Filename:
STD-1112A Inserta Tee® Fittings ADS N-12 Multifit Connections Detail.dwg

This document explains the Inserta Tee MultiFit Detail. A detail of the Inserta Tee, part number chart and configuration options provided.
Inserta Tee MultiFits are made for a specific lateral pipe type and size and fits a size range of a specific mainline type.

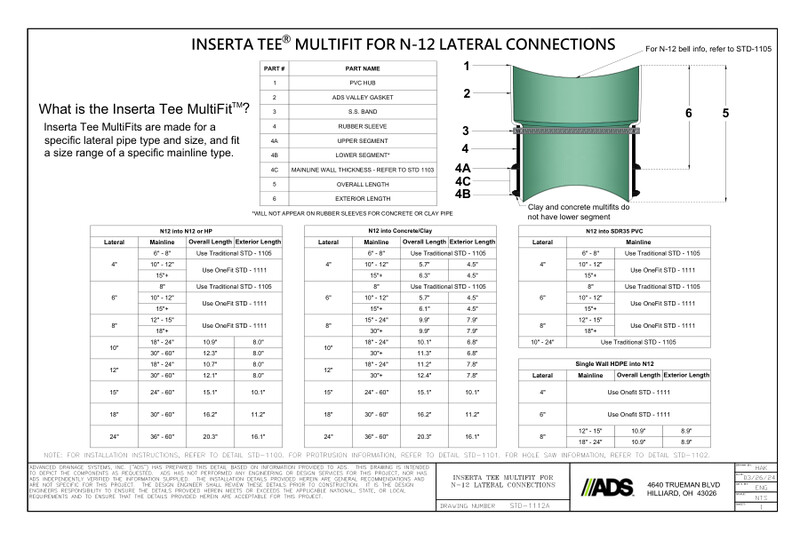

The figure shows the Inserta Tee Multifit. A table has the part number and part name shown in the detail. Clay and concrete multifits do not have lower segments.
The configuration options chart shows the size requirements for N12 into N12 or HP, N12 into concrete/clay mainlines, N12 into SDR35 PVC and single wall HDPE into N12.
A note to access further information is provided.
