12"-24" 11.25° Bends - Bell/Bell (HP Storm Bends Fittings Manual)

Filename:
12"-24" 11.25° Bends - Bell/Bell (HP Storm Bends Fittings Manual).pdf

Download Document (pdf) View in Browser
12"-24" 11.25° Bends - Bell/Bell (HP Storm Bends Fittings Manual)

This document is the 12"-24" 11.25º Bends – Bell/Bell (HP Storm Bends Fittings Manual). Diagram with table provided.

A table with part number, pipe size and A/Joint dimensions is provided.

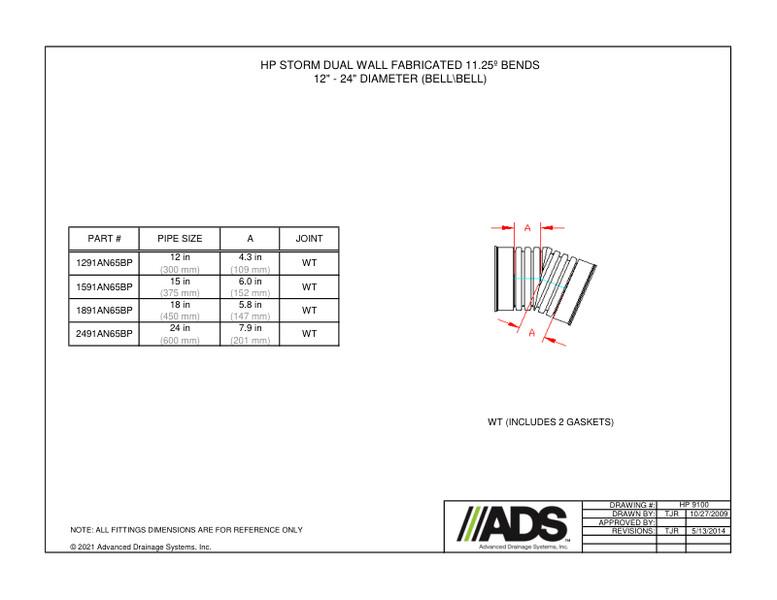

The diagram of the HP Storm Dual Wall Fabricated 11.25º bends 12"-24" diameter (Bell/Bell) with a note of WT (includes 2 gaskets) is shown.

All fittings dimensions are for reference only.
