6" - 24" Drop In Grate Installation Nyloplast Detail

Filename:
6" - 24" Drop In Grate Installation Nyloplast Detail.dwg

Download Document (dwg)
6" - 24" Drop In Grate Installation Nyloplast Detail

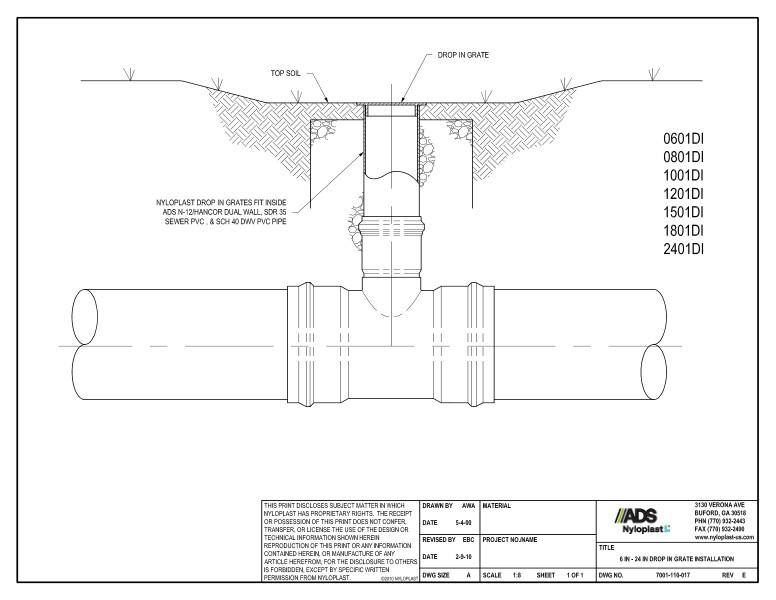

This document is the 6” - 24" Drop In Grate Installation Nyloplast Detail. It shows the drop in grate illustration with descriptions.

The illustration shows the drop in grate with top soil and the nyloplast drop in grate that fits inside ADS N-12/Hancor dual wall, SDR 35 sewer PVC and SCH 40 DWV PVC pipe.

6" - 24" Drop In Grate Installation Nyloplast Detail
