24 x 8 N-12 Dual Wall Tee Nyloplast Detailv
Filename:
24 x 8 N-12 Dual Wall Tee Nyloplast Detailv.pdf
![24 x 8 N-12 Dual Wall Tee Nyloplast Detailv](https://assets.adspipe.com/m/2a978c1bb9c05b94/webimage-24-x-8-N-12-Dual-Wall-Tee-Nyloplast-Detailv.jpg)

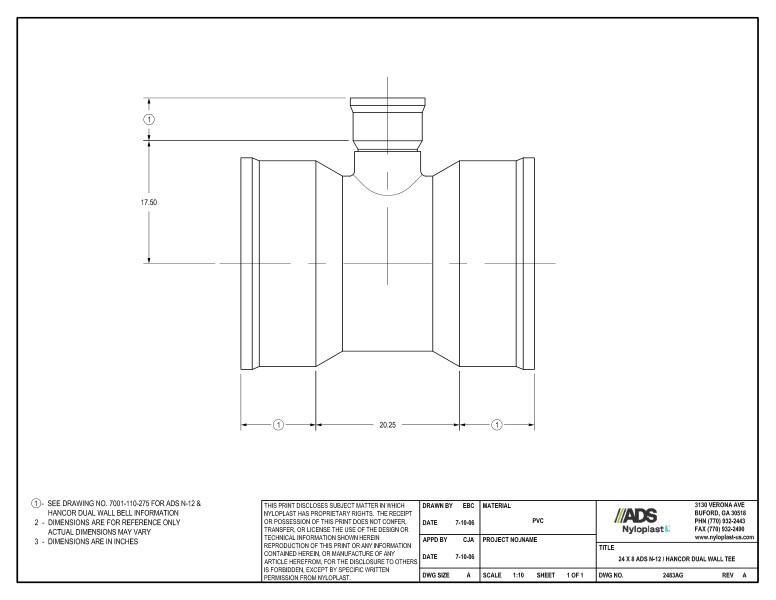

This document is the 24 x 8 N-12 Dual Wall Tee Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references Hancor Dual Wall Bell for more information. Note 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
