12" x 4" - 12" x 10" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings)
Filename:
12" x 4" - 12" x 10" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings).pdf
![12" x 4" - 12" x 10" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings)](https://assets.adspipe.com/m/325f706609805276/webimage-12-x-4-12-x-10-Fabricated-Reducing-Tees-HDPE-Dual-Wall-Fabricated-Tees-Fittings.jpg)

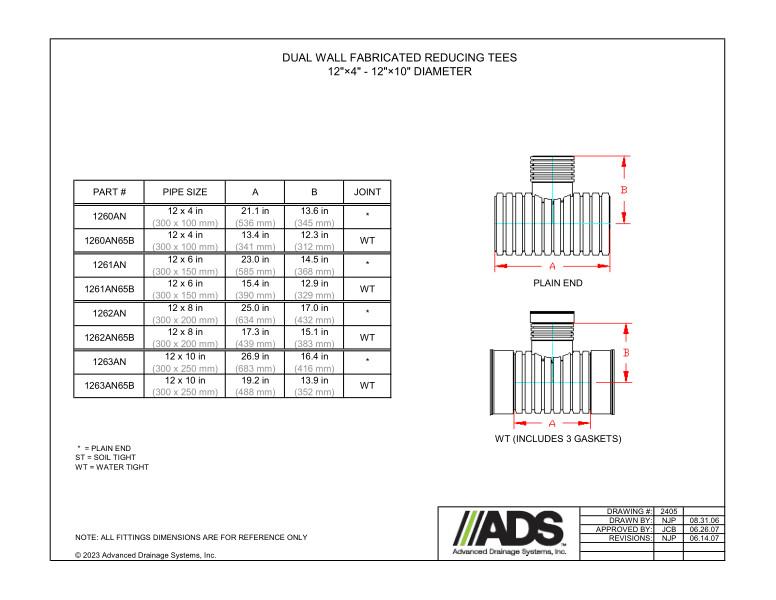

This document is the 12" x 4" - 12" x 10" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings). Diagrams with table provided.
The dual wall Fabricated Reducing Tees 12" x 4" - 12" x 10" diameter is shown in a Plain End diagram with A/B dimensions and a WT (includes 3 gaskets) Tee that shows A/B dimensions.
A table with the information for part number, pipe size and A/B/Joint sizes is provided.
All fittings dimensions are for reference only.
