18" - 30" Minimum Angle Between Adapters with EnviroHood Nyloplast Detail

Filename:
18" - 30" Minimum Angle Between Adapters with EnviroHood Nyloplast Detail.pdf

18" - 30" Minimum Angle Between Adapters with EnviroHood Nyloplast Detail

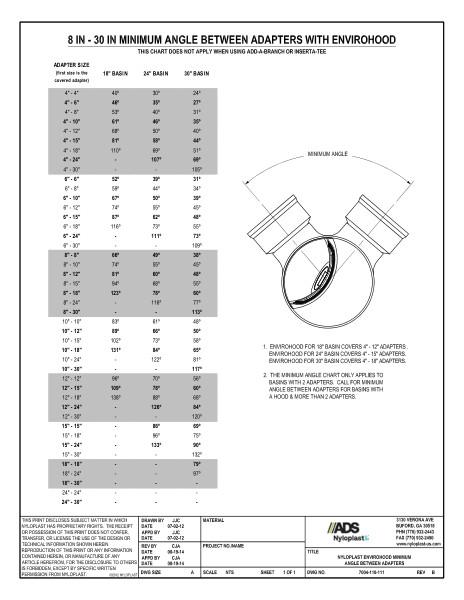

This document is the 18" - 30" Minimum Angle Between Adapters with EnviroHood Nyloplast Detail. Adapter size to various basins and nyloplast illustration shown.

A chart defines the adapter size from 4” to 24” in relation to an 18”, 24” and 30” basin. An illustration shows the minimum angle. Notes shows envirohood for 18”, 24” and 30” covers corresponding adapters, and the minimum angle chart only applies to basins with 2 adapters.

The chart does not apply when using add-a-branch or inserta-TEE.
