12" Standard Locking Grate Assembly Nyloplast Detail
Filename:
12" Standard Locking Grate Assembly Nyloplast Detail.dwg
![12" Standard Locking Grate Assembly Nyloplast Detail](https://assets.adspipe.com/m/682b59725fcde025/webimage-12-Standard-Locking-Grate-Assembly-Nyloplast-Detail.jpg)

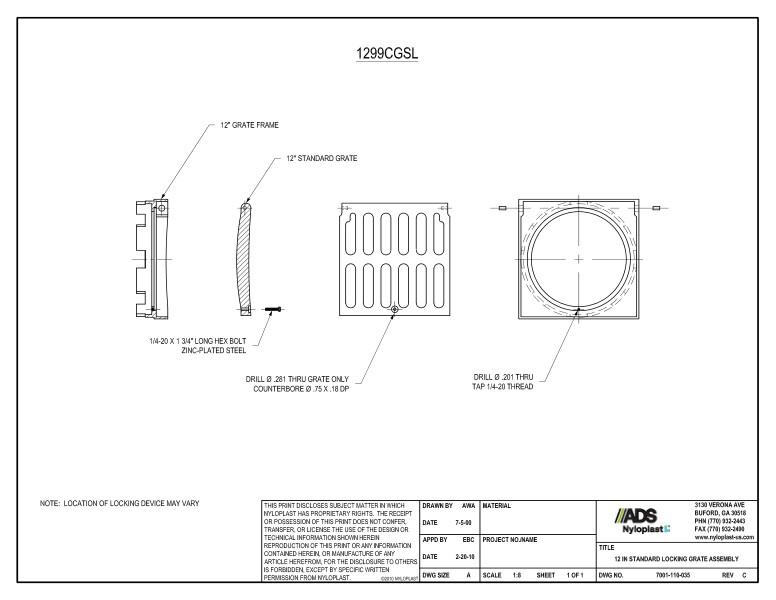

This document is the 12" Standard Locking Grate Assembly Nyloplast Detail. It shows illustrations with descriptions.
The side view illustrations show the 12” grate frame & 12” standard grate with ¼-20 x 1 ¾” long hex bolt zinc-plated steel. The top down view shows the grate with drill thru position and the frame drill thru thread position.
A note states that the location of locking device may vary.
