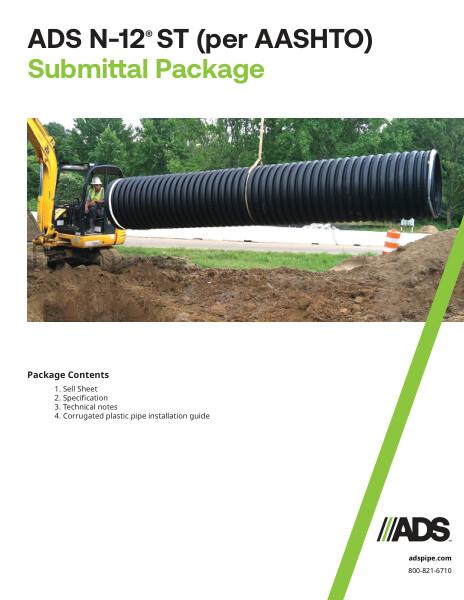

N-12 Soil Tight (per AASHTO) Submittal Package
Filename:
N-12 Soil Tight (per AASHTO) Submittal Package.pdf
The ADS® N-12® ST (per AASHTO) Submittal Package gives pipe information, including a sell sheet, specification, technical notes and the corrugated plastic pipe installation guide.
The sell sheet highlights information about the pipe, including applications, features and benefits, pipe requirements, joint performance, fittings, field performance, material properties and installation guidelines.
The specifications page has information on pipe requirements, joint performance, fittings, material properties and installation guidelines.
Technical notes in the submittal package include TN 1.07 Manhole Adapter Guide, TN 2.01 Minimum and Maximum Burial Depth for Corrugated HDPE Pipe, TN 5.02 Flowable Fill Backfill for Thermoplastic Pipe, TN 5.04 HDPE Connections to Manholes and Structures for Storm Sewer Applications, TN 5.06 Culvert Sliplining, TN 5.07 Post Installation Testing for HDPE Pipe and TN 5.10 Integral Bell Transition for HDPE Pipe.
Information items in the corrugated plastic pipe installation guide include job site handling/receiving, job site pipe storage, trench construction, trench boxes, bell & spigot joint assembly, joining different pipe types & sizes, field gasket assembly, fittings assembly, backfill recommendations, installation considerations, repair methods, in-field testing recommendations and an appendix.
