12" - 60" WT End Caps (HDPE End Caps and Plugs Fittings)

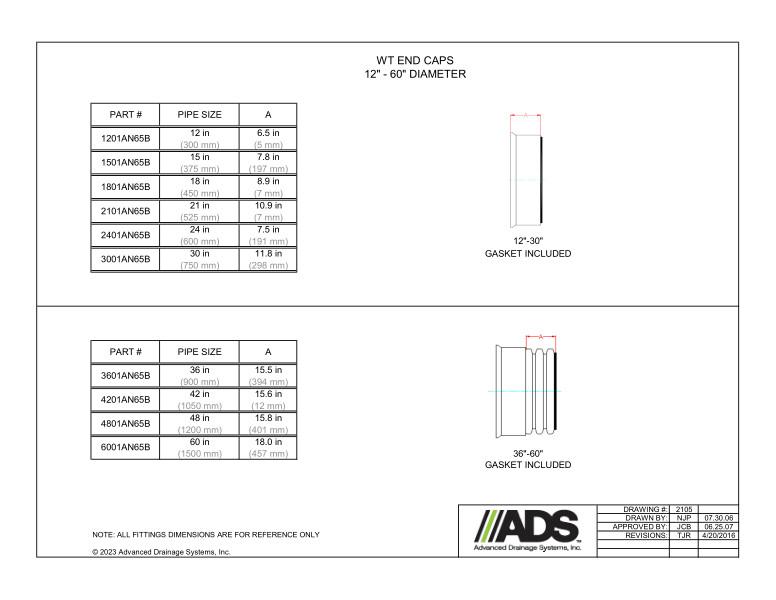

This document is the 12”-60” WT End Caps (HDPE End Caps & Plugs Fittings). Illustrations with reference tables are shown.

The WT End Caps 12”-60” diameter side view illustration is shown with 12”-30” gasket included. A table with part number, pipe size and A dimensions is provided.

The WT End Caps 12”-60” diameter side view illustration is shown with 36”-60” gasket included. A table with part number, pipe size and A dimensions is provided.

All fittings dimensions are for reference only.
