This document is the 21" x 15" - 21" x 18" Fabricated Reducers (HDPE Dual Wall Fabricated Reducers Fittings). Diagrams with table provided.

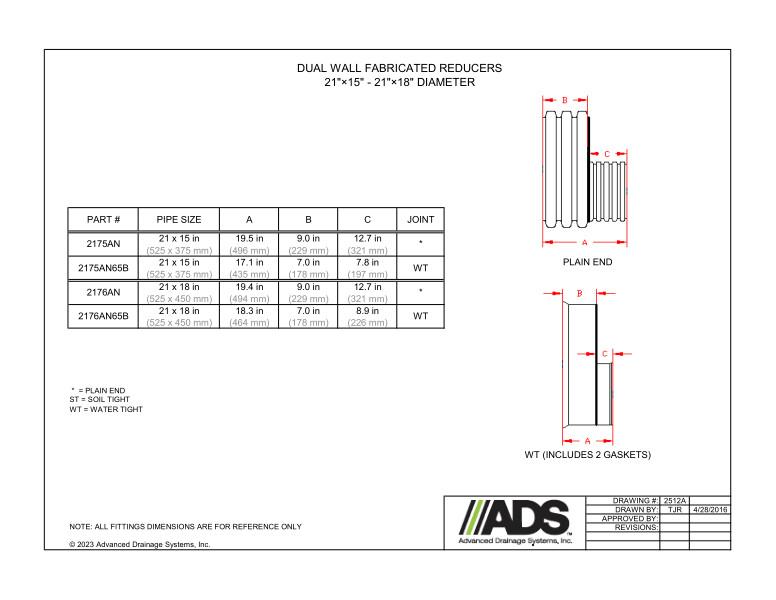

The Dual Wall Fabricated Reducers 21" x 15" - 21" x 18" diameter plain end diagram shows the A/B/C dimensions. The WT diagram includes 2 gaskets and shows the A/B/C dimensions.

A table with part number, pipe size and A/B/C/Joint dimensions is provided.

All fittings dimensions are for reference only.
