Filename: 2' x 3' Steel Bar Locking Grate Assembly Nyloplast Detail.pdf

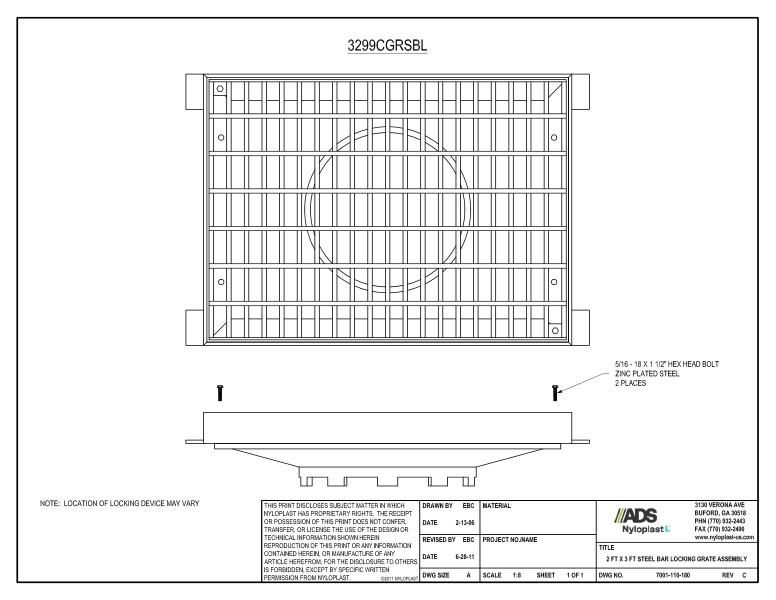

This document is the 2’ x 3’ Steel Bar Grate Locking Assembly Nyloplast Detail. 2 nyloplast illustrations with dimensions shown.
1 detail shows the grate from the top. Side view details hex head bolt in zinc plated steel in 2 places.
A note states that the location of locking device may vary.
