Aquabox Underdrain Detail

Filename:
Aquabox Underdrain Detail.pdf

Download Document (pdf) View in Browser
Aquabox Underdrain Detail

This document describes the Aquabox Underdrain Detail. It includes details of components in cross sections.

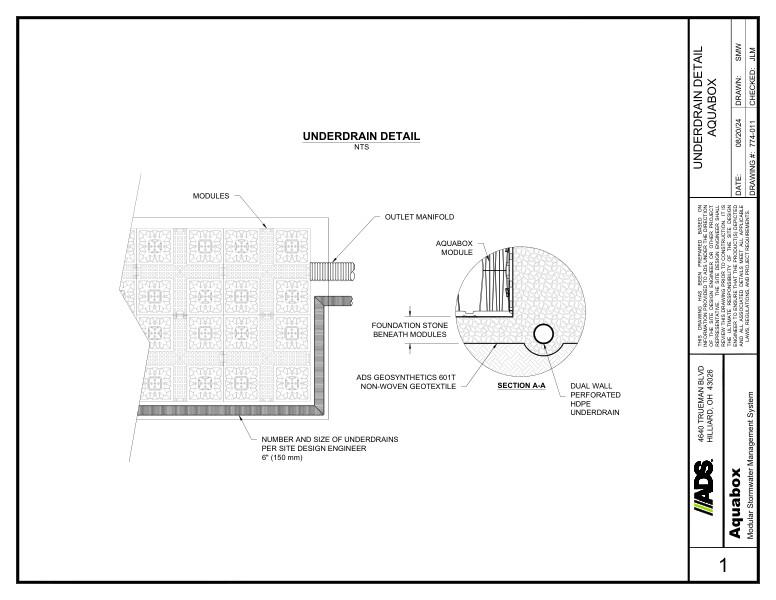

The underdrain detail features 1 cross section showing the modules, outlet manifold and number/size of underdrains per site design engineer.

The 2nd detail shows the Aquabox module, foundation stones beneath modules, ADS Geosynthetics non-woven geotextile and a dual wall perforated HDPE underdrain.

Aquabox Underdrain Detail
