30" - 36" StormTech Dual Wall Fabricated Soil Tight Single Reducing Manifolds (StormTech Dual Wall HDPE Fittings)
Filename:
30" - 36" StormTech Dual Wall Fabricated Soil Tight Single Reducing Manifolds (StormTech Dual Wall HDPE Fittings).pdf
![30" - 36" StormTech Dual Wall Fabricated Soil Tight Single Reducing Manifolds (StormTech Dual Wall HDPE Fittings)](https://assets.adspipe.com/m/69b0424dbe84ac10/webimage-30-36-StormTech-Dual-Wall-Fabricated-Soil-Tight-Single-Reducing-Manifolds-StormTech-Dual-Wall-HDPE-Fittings.jpg)
This document is the 30" - 36" StormTech Dual Wall Fabricated Soil Tight Single Reducing Manifolds (StormTech Dual Wall HDPE Fittings). Diagrams and table included.

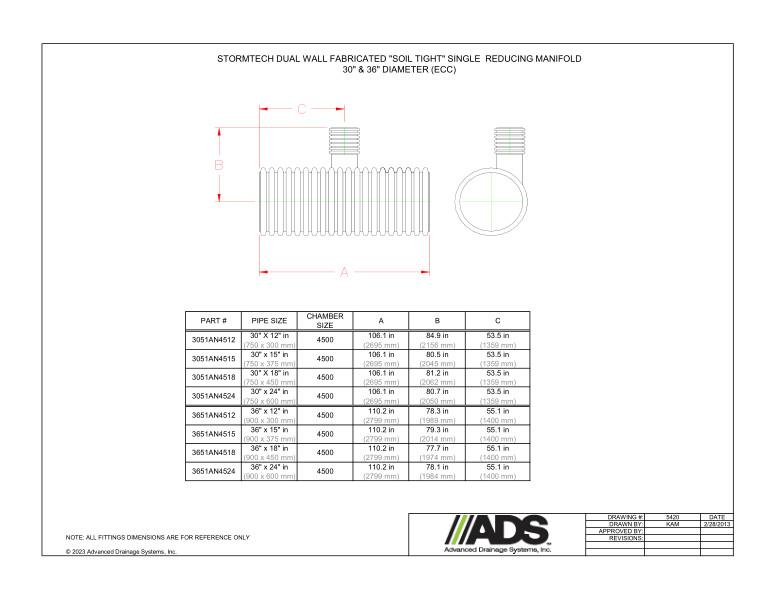

StormTech Dual Wall Fabricated “Soil Tight” Single Reducing Manifold 30" - 36" diameter (ECC) shows the side view and inside view manifold diagrams with A/B/C dimensions.
The table lists the part number, pipe size, chamber size and A/B/C dimension values.
All fittings dimensions are for reference only.
