36" x 4" - 36" x 10" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings)
Filename:
36" x 4" - 36" x 10" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings).pdf
![36" x 4" - 36" x 10" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings)](https://assets.adspipe.com/m/5d0c599869044e5e/webimage-36-x-4-36-x-10-Fabricated-Reducing-Tees-HDPE-Dual-Wall-Fabricated-Tees-Fittings.jpg)

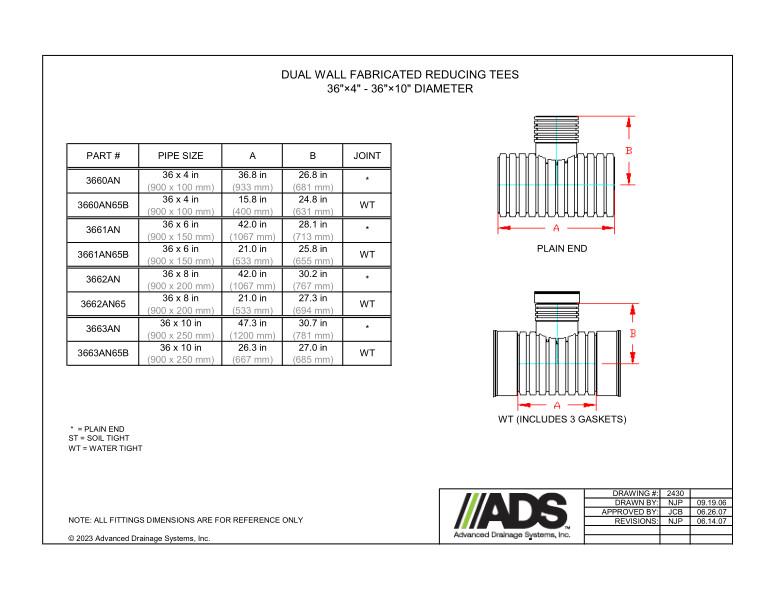

This document is the 36" x 4" - 36" x 10" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings). Diagrams with table provided.
The dual wall Fabricated Reducing Tees 36" x 4" - 36" x 10" diameter is shown in a Plain End diagram with A/B dimensions and a WT (includes 3 gaskets) Tee that shows A/B dimensions.
A table with the information for part number, pipe size and A/B/Joint sizes is provided.
All fittings dimensions are for reference only.
