36" - 60" Fabricated Soil Tight Plain End 90 Degree Manifold Bends (HDPE Dual Wall Fabricated Manifolds Fittings)

This document is the 36" - 60" Fabricated Soil Tight Plain End 90 Degree Manifold Bends (HDPE Dual Wall Fabricated Manifolds Fittings). A diagram with table provided.

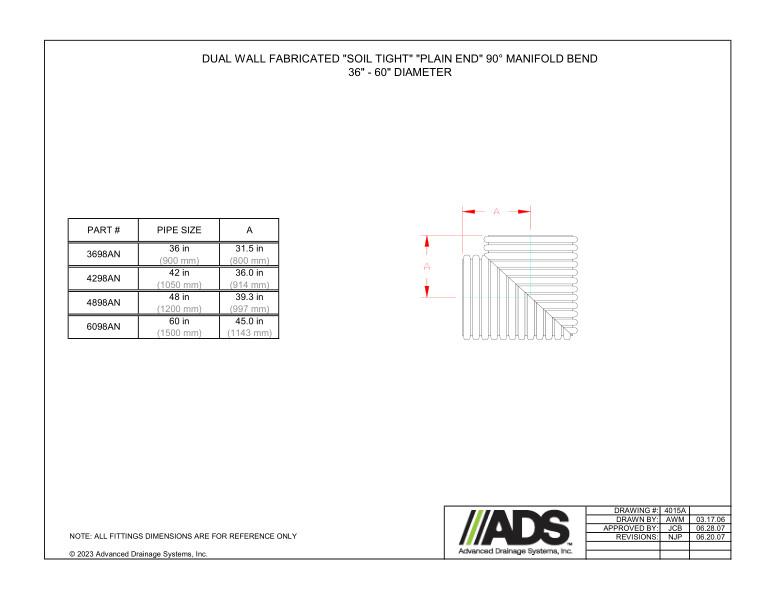

The dual wall Fabricated “Soil Tight” “Plain End” 90 Degree Manifold Bend 36" - 60" diameter is shown in a diagram that shows A dimensions.

A table with the information for part number, pipe size and A sizes is provided.

All fittings dimensions are for reference only.
