6" - 24" StormTech Dual Wall Fabricated Soil Tight Plain End 90 Degree Manifold Bends (StormTech Dual Wall HDPE Fittings)

Filename:
6" - 24" StormTech Dual Wall Fabricated Soil Tight Plain End 90 Degree Manifold Bends (StormTech Dual Wall HDPE Fittings).pdf

6" - 24" StormTech Dual Wall Fabricated Soil Tight Plain End 90 Degree Manifold Bends (StormTech Dual Wall HDPE Fittings)

This document is the 6" - 24" StormTech Dual Wall Fabricated Soil Tight Plain End 90 Degree Manifold Bends (StormTech Dual Wall HDPE Fittings). A diagram with table provided.

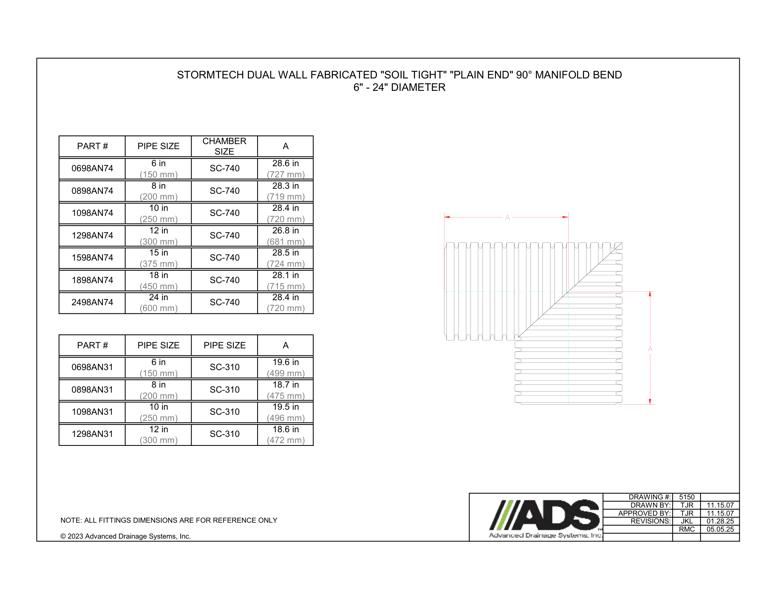

The StormTech dual wall Fabricated “Soil Tight” “Plain End” 90 Degree Manifold Bend 6" - 24" diameter is shown in a diagram that shows A dimensions.

A table with the information for part number, pipe size and A sizes is provided.

All fittings dimensions are for reference only.
