Inline Drain With Pedestrian Grate Quick Spec Installation Nyloplast Detail
Filename:
Inline Drain With Pedestrian Grate Quick Spec Installation Nyloplast Detail.dwg

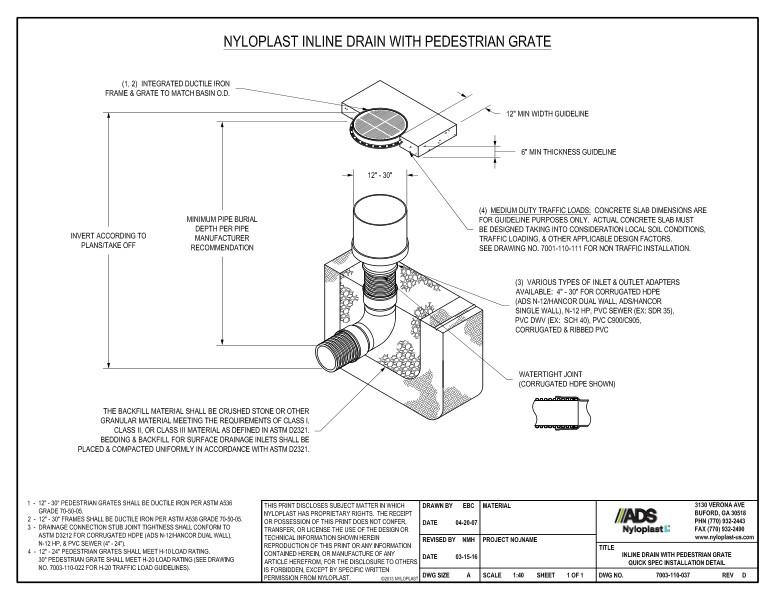

This document is the Inline Drain With Pedestrian Grate Quick Spec Installation Nyloplast Detail. It shows the nyloplast inline drain with descriptions.
The illustration shows the integrated ductile iron frame & grate to match basin, minimum pipe burial, inverts, various types of inlet/outlet adapters, 12” minimum width/6” minimum thickness, medium duty traffic loads, watertight joint and backfill material made from crushed stone or other granular material.
Note 1 states that pedestrian grates shall be ductile iron per ASTM A536 grade 70-50-05. Note 2 states that frames shall be ductile iron per ASTM A536 grade 70-50-05. Note 3 explains that drainage connection stub joint tightness shall conform to ASTM D3212 for corrugated HDPE, N-12 HP & PVC sewer. Note 4 states that pedestrian grates shall meet H-10 or H-20 load rating per grate type.
