12 x 12 N-12 Dual Wall Tee with Gasketed SWR Bell Nyloplast Detail

Filename:
12 x 12 N-12 Dual Wall Tee with Gasketed SWR Bell Nyloplast Detail.pdf

12 x 12 N-12 Dual Wall Tee with Gasketed SWR Bell Nyloplast Detail

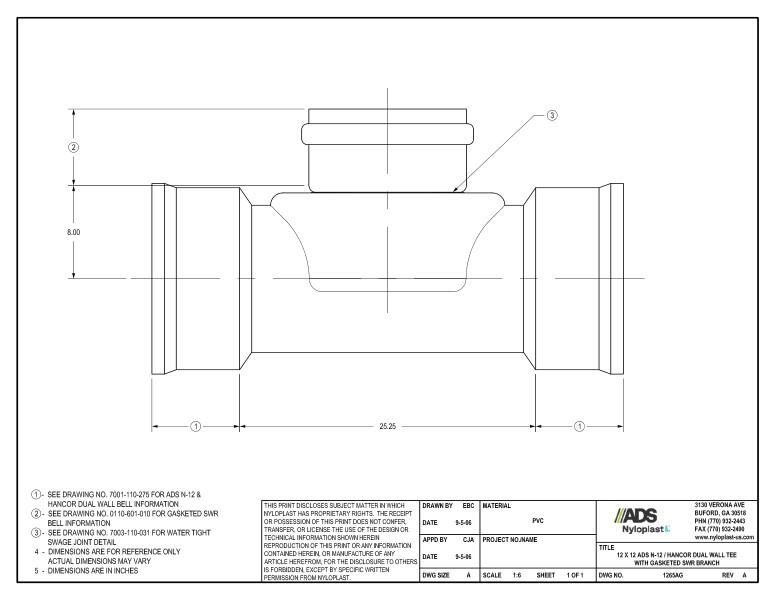

This document is the 12 x 12 N-12 Dual Wall Tee with Gasketed SWR Bell Nyloplast Detail. Dimensions and nyloplast illustration shown.

A note on dimension 1 references Hancor Dual Wall Bell for more information. Note 2 refers to a drawing for gasketed SWR Bell information. Note 3 refers to drawing for water tight SWAGE joint detail. A note on dimension 4 states that dimensions are for reference only. Note 5 specifies that dimensions are in inches.

An illustration showing the dimensions is provided.
