12" - 18" 45º Wyes - Plain End (HP Storm Wyes Fittings Manual)

Filename:
12" - 18" 45º Wyes - Plain End (HP Storm Wyes Fittings Manual).pdf

Download Document (pdf) View in Browser
12" - 18" 45º Wyes - Plain End (HP Storm Wyes Fittings Manual)

This document is the 12" x 18" 45º Wyes – Plain End (HP Storm Wyes Fittings Manual). Diagram with table provided.

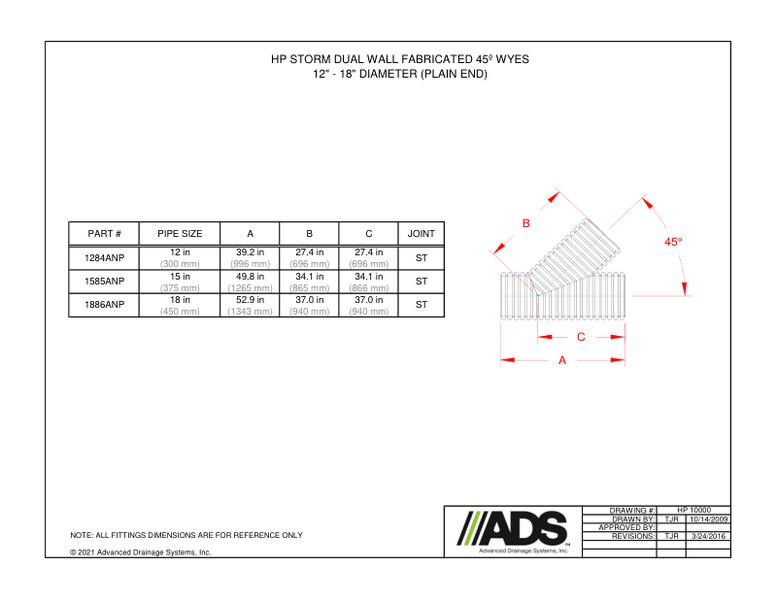

The diagram of the HP Storm Dual Wall Fabricated Reducing 45º Wyes 12" x 18" 45º Wyes – (Plain End) with A/B/C dimensions and 45 degree arc.

A table with part number, pipe size and A/B/C/Joint dimensions is provided.

All fittings dimensions are for reference only.
