8" N-12 Dual Wall End Cap Nyloplast Detail
Filename:
8" N-12 Dual Wall End Cap Nyloplast Detail.dwg
![8" N-12 Dual Wall End Cap Nyloplast Detail](https://assets.adspipe.com/m/1b2bf97b77fafb91/webimage-8-N-12-Dual-Wall-End-Cap-Nyloplast-Detail.jpg)

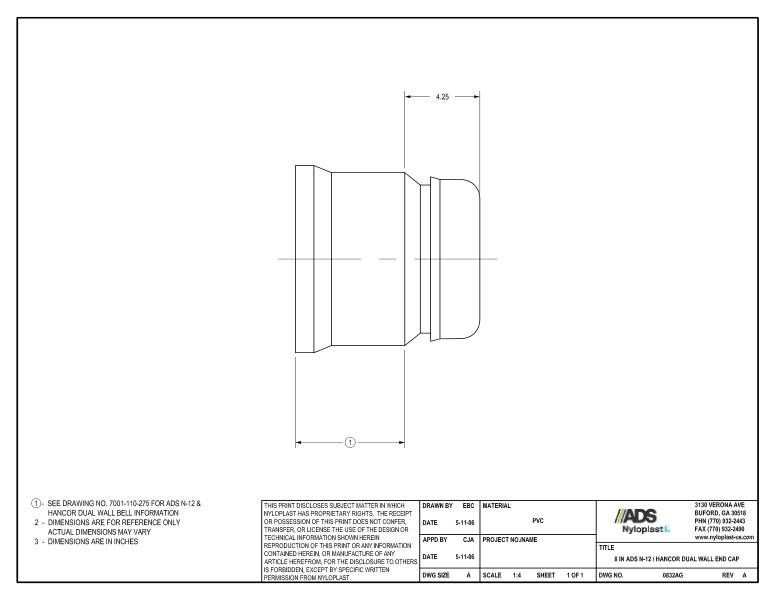

This document is the 8” N-12 Dual Wall Endcap Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references Hancor Dual Wall Bell for more information. Note 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
