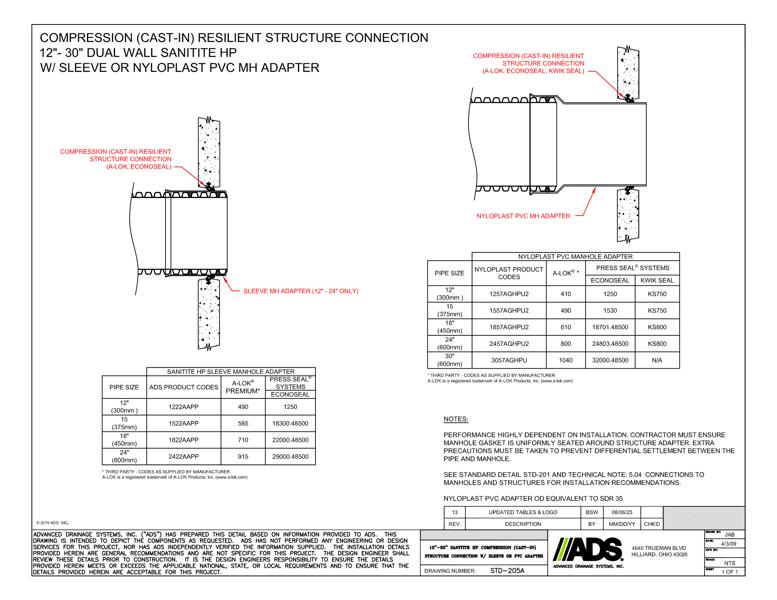

This document is the 205A 12-30 SaniTite HP Compression (Cast-In) Structure Connection with Sleeve or PVC Adapter Detail. Diagrams and charts provided.

The diagram shows the Compression (Cast-In) Resilient Structure Connection (A-LOK, Econoseal) and sleeve MH adapter.

A second diagram shows the Compression (Cast-In) Resilient Structure Connection (A-LOK, Econoseal, Kwik Seal) and and Nyloplast PVC MH adapter.

A chart provides values for the SaniTite HP Sleeve Manhole Adapter for pipe size, ADS product codes, A-LOK Premium, Press Seal systems/ Econoseal.

A second chart provides values for the Nyloplast PVC Manhole adapter for pipe size, Nyloplast Adapter product codes, A-LOK Premium, Press Seal systems/ Econoseal and Kwik Seal.

Notes state that performance is highly dependent on installation. Manhole gasket must be uniformly seated around structure adapter. Take precautions to prevent differential settlement between the pipe and manhole.
