ADS Plus-US Woven Geosynthetic Specification

ADS Plus-US Woven Geosynthetic Specification.pdf

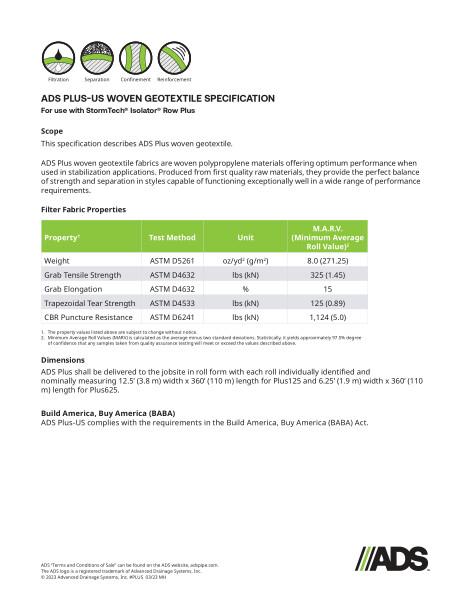

ADS Plus-US Woven Geosynthetic Specification

This document is the specification for Geo Spec Plus-US Woven. Scope, filter fabric properties with table, dimensions and build America discussed.

This specification describes ADS Plus woven geotextile. ADS Plus woven geotextile fabrics are woven polypropylene materials offering optimum performance when used in stabilization applications. Produced from first quality raw materials, they provide the perfect balance of strength and separation in styles capable of functioning exceptionally well in a wide range of performance requirements.

The filter fabric properties table lists the properties of weight, grab tensile strength, grab elongation, trapezoidal tear strength, and CBR puncture resistance. Test method, unit and M.A.R.V. values provided.

ADS Plus shall be delivered to the jobsite in roll form with each roll individually identified and nominally measuring 12.5’ (3.8 m) width x 360’ (110 m) length for Plus125 and 6.25’ (1.9 m) width x 360’ (110m) length for Plus625. ADS Plus-US complies with the requirements in the Build America, Buy America (BABA) Act.
