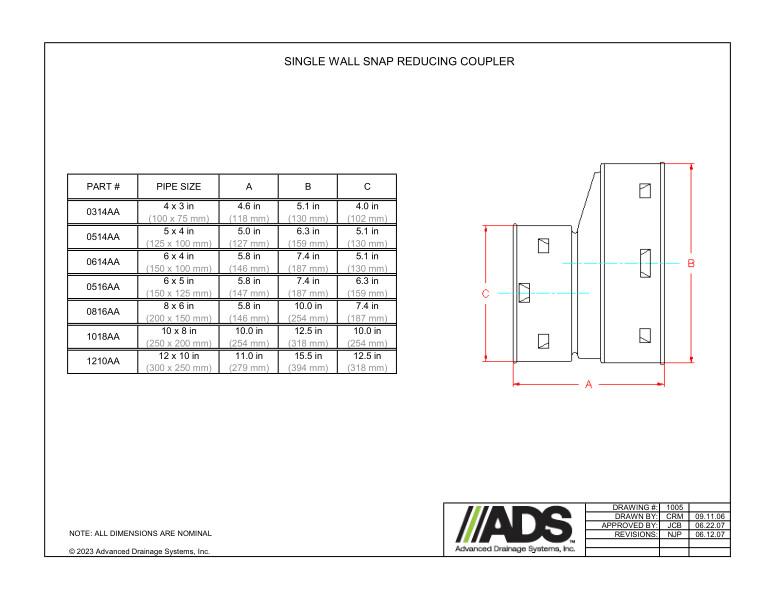

This document is the Snap Reducing Coupler (HDPE Singlewall Fittings). The snap coupler is shown with dimensions chart.

The snap reducing coupler detail shows the A/B/C dimensions.

A chart is provided with part number, pipe size A/B/C dimensions.

Notes state that all dimensions are nominal.
