15 x 10 N-12 Dual Wall Tee Nyloplast Detail
Filename:
15 x 10 N-12 Dual Wall Tee Nyloplast Detail.dwg
![15 x 10 N-12 Dual Wall Tee Nyloplast Detail](https://assets.adspipe.com/m/749b57f8ce08eee3/webimage-15-x-10-N-12-Dual-Wall-Tee-Nyloplast-Detail.jpg)

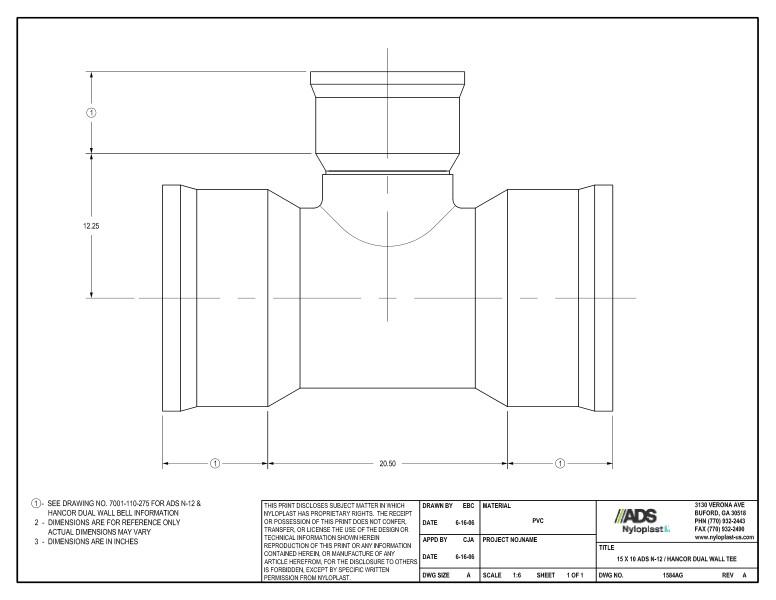

This document is the 15 x 10 N-12 Dual Wall Tee Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references Hancor Dual Wall Bell for more information. Note 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
