StormTech MC-Series End Cap Insertion.

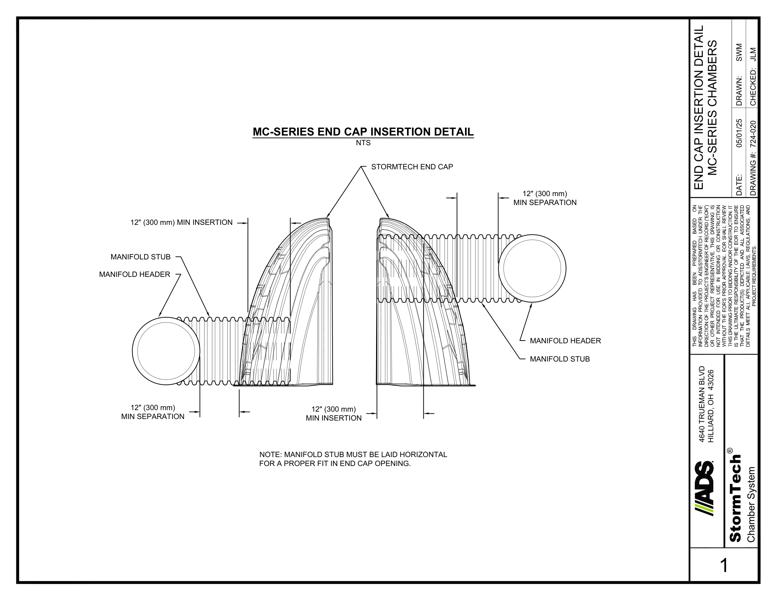

This document is the StormTech MC-Series End Cap Insertion. A cross section of the end cap insertion is shown.

In the cross section, details show the StormTech end cap with 12” minimum insertion placements, manifold stub, manifold header and the 12” minimum separation placements.

A note mentions that the manifold stub must be laid horizontally for a proper fit in the end cap opening.
