42" x 6" - 42" x 15" Fabricated Reducers (HDPE Dual Wall Fabricated Reducers Fittings)

Filename:
42" x 6" - 42" x 15" Fabricated Reducers (HDPE Dual Wall Fabricated Reducers Fittings).pdf

42" x  6" - 42" x 15" Fabricated Reducers (HDPE Dual Wall Fabricated Reducers Fittings)

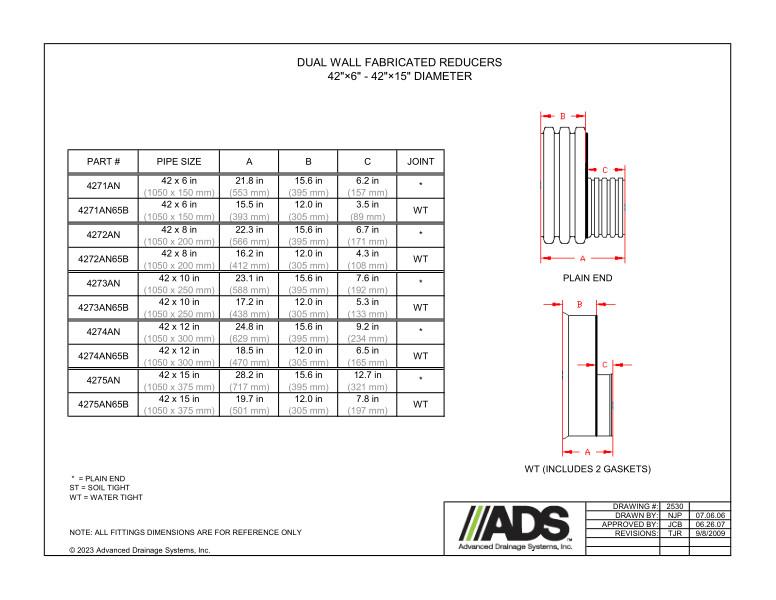

This document is the 42" x 6" - 42" x 15" Fabricated Reducers (HDPE Dual Wall Fabricated Reducers Fittings). Diagrams with table provided.

The Dual Wall Fabricated Reducers 42" x 6" - 42" x 15" diameter plain end diagram shows the A/B/C dimensions. The WT diagram includes 2 gaskets and shows the A/B/C dimensions.

A table with part number, pipe size and A/B/C/Joint dimensions is provided.

All fittings dimensions are for reference only.
