1413A Duraslot Grate Anchor

Filename:
1413A Duraslot Grate Anchor.pdf

1413A Duraslot Grate Anchor

This document shows the 1413A Duraslot Grate Anchor. Details of the Duraslot anchor with dimensions, information table and notes provided.

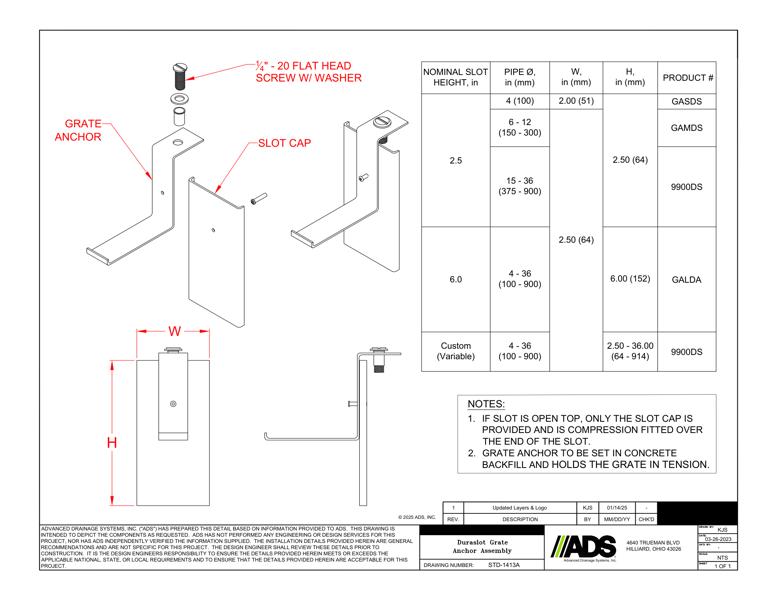

The details show the grate anchor, flat head screw with washer, slot cap and W/H dimension.

A table lists the values for nominal slot height, pipe in mm, width, height and the product number.

Notes state that if the slot is open top, only the slot cap is provided and is compression fitted over the end of the slot. Grate anchor to be set in concrete backfill and holds the grate in tension.
