42" x 4" - 42" x 10" Fabricated Reducing Wyes (HDPE Duall Wall Fabricated Wyes Fittings))
Filename:
42" x 4" - 42" x 10" Fabricated Reducing Wyes (HDPE Duall Wall Fabricated Wyes Fittings)).pdf
This document is the 42" x 4" - 42" x 10" Fabricated Reducing Wyes (HDPE Dual Wall Fabricated Wyes Fittings). Diagrams with table provided.

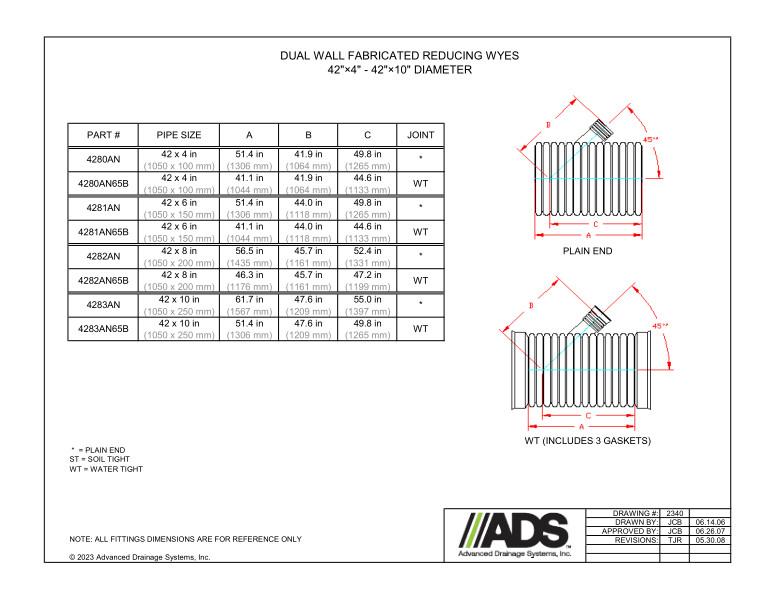

The diagram of the Dual Wall Fabricated Reducing Wyes 42" x 4" - 42" x 10" diameter shows the Plain End Wye with A/B/C dimensions and 45 degree arc. The WT (includes 3 gaskets) Wye is shown with A/B/C dimensions and 45 degree arc.
A table with part number, pipe size and A/B/C/Joint dimensions is provided.
All fittings dimensions are for reference only.
