This document is the 22.5º Bends 12"-60" HP Storm – Plain End (HP Storm Bends Fittings Manual). Diagram with table provided.

A table with part number, pipe size and A/Joint dimensions is provided.

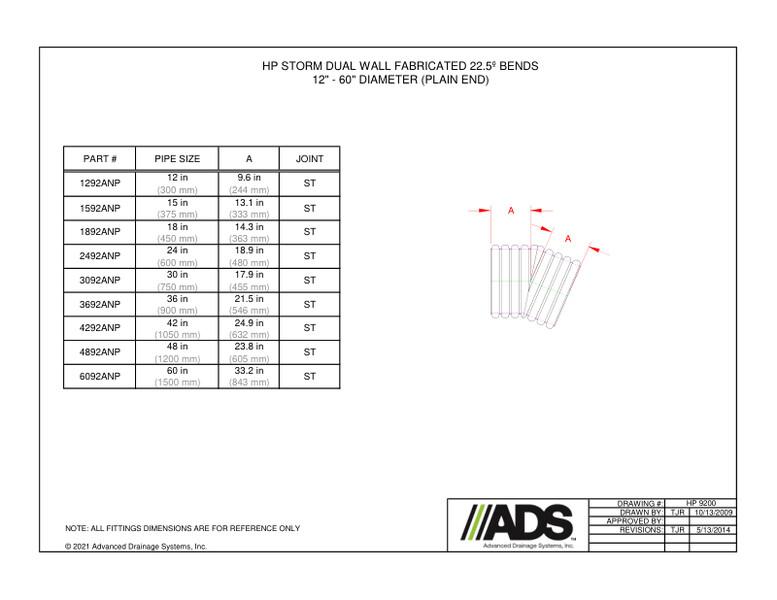

The diagram of the HP Storm Dual Wall Fabricated 22.5º bends 12"-60" diameter (Plain End) is shown.

All fittings dimensions are for reference only.
