4" 45 Degree Snap Elbow (HDPE Single Wall Fittings)

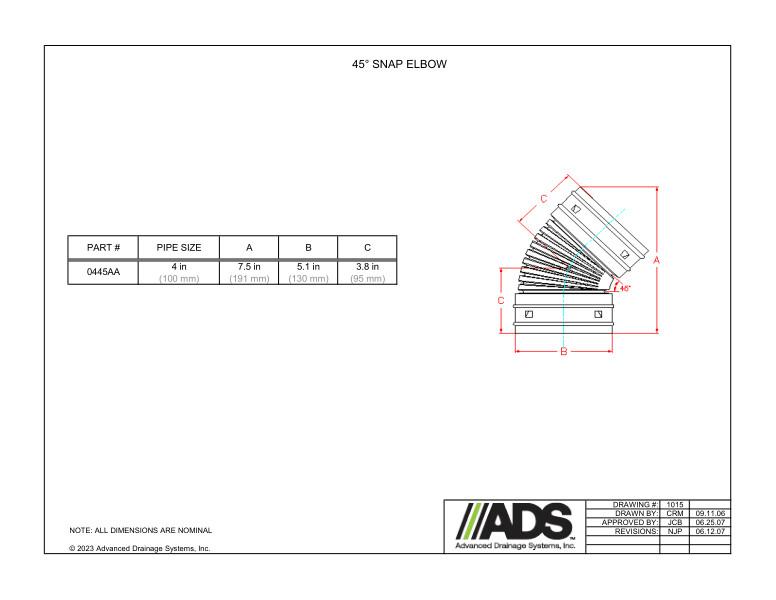

This document is the 4” 45 Degree Snap Elbow (HDPE Single Wall Fittings). 45 degree snap elbow detail with table shown.

The snap elbow detail shows the A/B/C dimensions and 45 degree arc.

A table has the values for part number, pipe size and A/B/C dimensions.

All dimensions are nominal.

4" 45 Degree Snap Elbow (HDPE Single Wall Fittings)
