12"-18" & 24" WT Bell-Bell 90° Manifold Bend (HP Storm Manifolds Fittings Manual)
Filename:
12"-18" & 24" WT Bell-Bell 90° Manifold Bend (HP Storm Manifolds Fittings Manual).pdf

This document is the 12”-18” & 24” WT Bell – Bell 90º Manifold Bend (HP Storm Manifolds Fittings Manual). Table with pipe size and diagram with descriptions included.

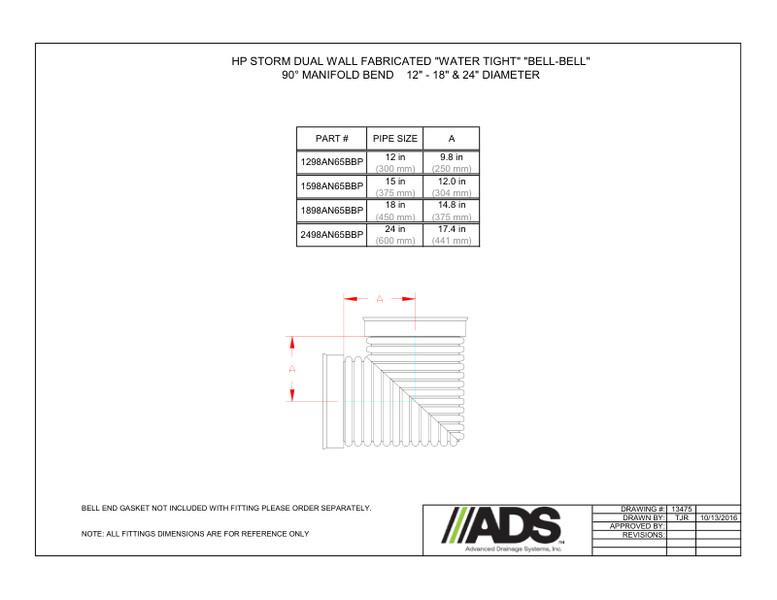

The HP Storm Dual Wall Fabricated “water tight” “Bell – Bell” 90º Manifold Bend 12”-18” & 24” diameter is shown with a chart that lists the values for Part number, pipe size and A. Diagram provided.
