Drain Basin with 3024BASERUD Base Plate & Domestic Casting Quick Spec Installation Nyloplast Detail
Drain Basin with 3024BASERUD Base Plate & Domestic Casting Quick Spec Installation Nyloplast Detail.pdf

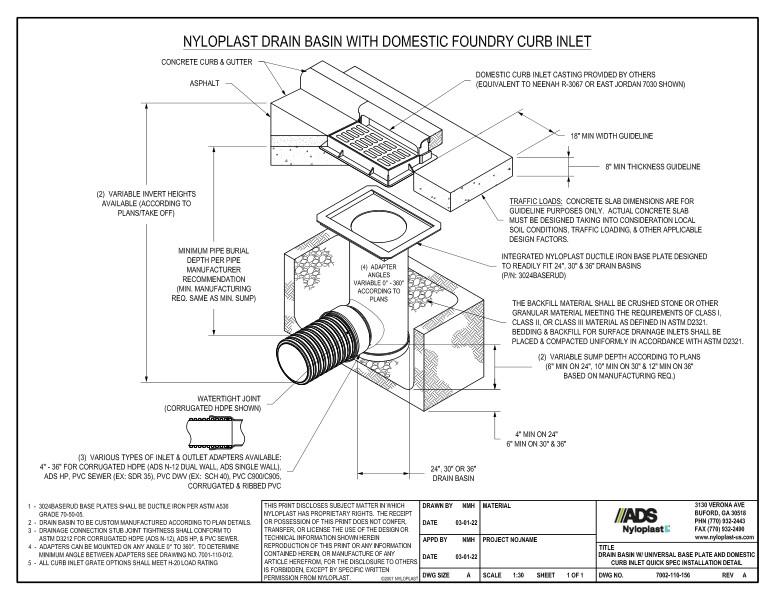

This document is the Nyloplast Drain Basin with Domestic Foundry Curb Inlet detail. A detailed diagram shows the unit and its variables.
The diagram shows the concrete curb and gutter, asphalt, domestic curb inlet casting, 18” minimum width guideline, 8” minimum width thickness guideline, 2 variable invert heights, pipe burial depth, traffic loads, integrated nyloplast ductile iron base plate, backfill material, variable sump depth, watertight joint, various types of inlet and outlet adapters and the drain basin.
Notes include base plates shall be ductile iron, drain basin to be custom manufactured, drainage connection stub joint tightness requirements, adapters can be mounted on any angle and all curb inlet grate options will meet H-20 load rating.
