30 x 24 HP Tee Nyloplast Detail
Filename:
30 x 24 HP Tee Nyloplast Detail.pdf
![30 x 24 HP Tee Nyloplast Detail](https://assets.adspipe.com/m/7acc2f0fee4d742a/webimage-30-x-24-HP-Tee-Nyloplast-Detail.jpg)

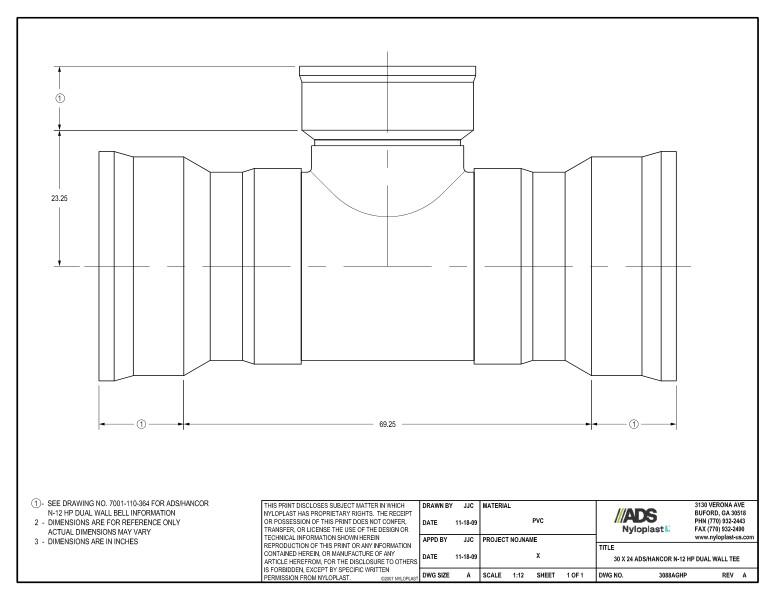

This document is the 30 x 24 HP Tee Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references ADS/Hancor N-12 HP Bell for more information. Note 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
