12" AdvanEdge Side Outlet (AdvanEdge Fittings)

12" AdvanEdge Side Outlet (AdvanEdge Fittings).pdf

12" AdvanEdge Side Outlet (AdvanEdge Fittings)

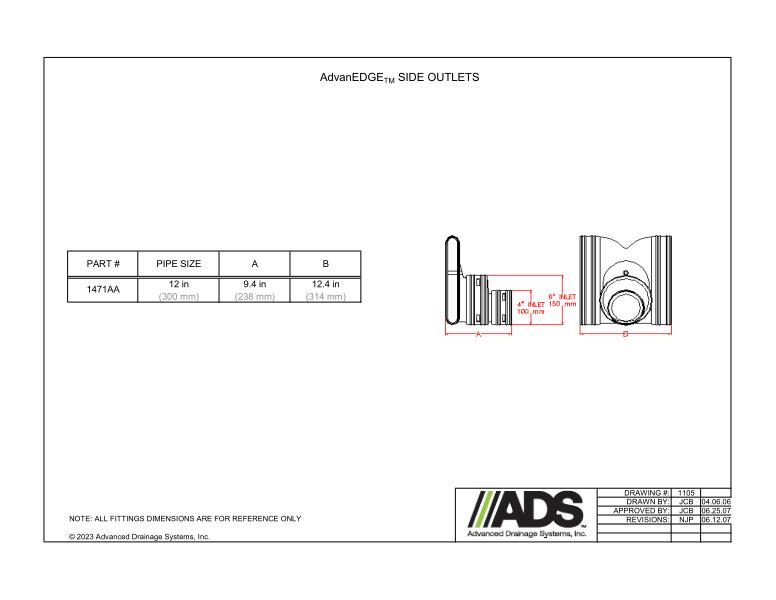

This document is the 12” AdvanEdge Side Outlet (AdvanEdge Fittings). A & B details shown with a dimension table.

The AdvanEDGE Side Outlets are shown 2 ways. The A detail has the dimensions of the inlet. The B detail is also shown.

A table is provided with the information for part number, pipe size, A & B dimensions.

All fittings dimensions are for reference only.
