12" Universal Inline Drain for SDR35 / SCH40 PVC

Filename:
12" Universal Inline Drain for SDR35 / SCH40 PVC.dwg

12" Universal Inline Drain for SDR35 / SCH40 PVC

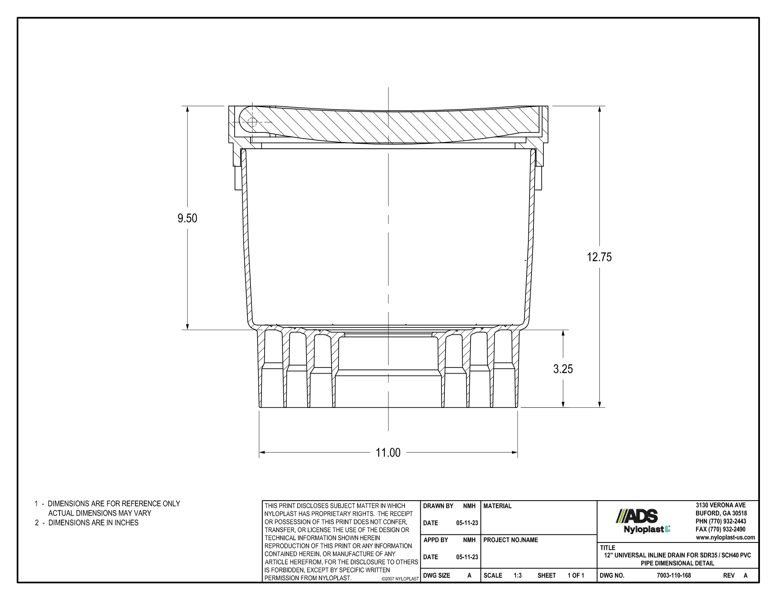

This document is the 12” Universal Inline Drain for SDR35/SCH40 PVC. It shows a figure of the inline drain with dimensions.

The dimensions are shown on the corresponding sides of the inline drain.

Notes state that dimensions are for reference only and that they are in inches.
