48" x 30" - 48" x 42" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings)
Filename:
48" x 30" - 48" x 42" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings).pdf
![48" x 30" - 48" x 42" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings)](https://assets.adspipe.com/m/5e49393352e52d59/webimage-48-x-30-48-x-42-Fabricated-Reducing-Tees-HDPE-Dual-Wall-Fabricated-Tees-Fittings.jpg)

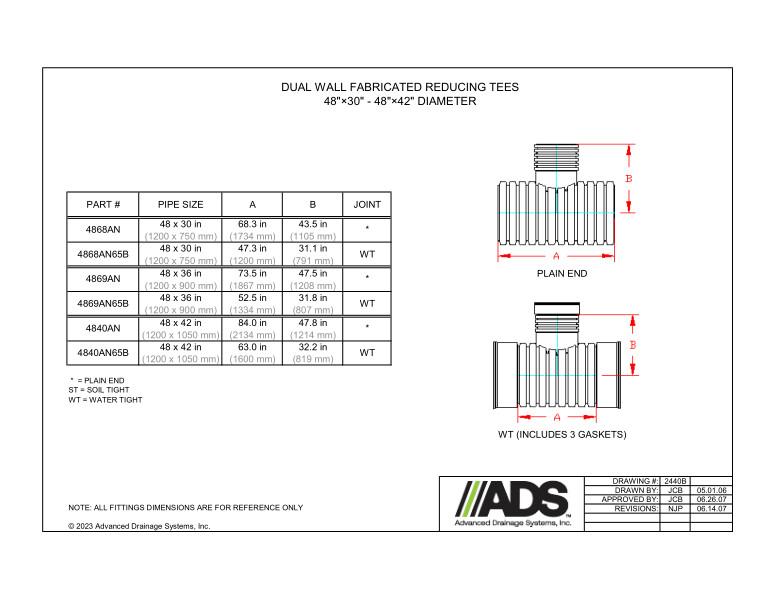

This document is the 48" x 30" - 48" x 42" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings). Diagrams with table provided.
The dual wall Fabricated Reducing Tees 48" x 30" - 48" x 42" diameter is shown in a Plain End diagram with A/B dimensions and a WT (includes 3 gaskets) Tee that shows A/B dimensions.
A table with the information for part number, pipe size and A/B/Joint sizes is provided.
All fittings dimensions are for reference only.
