12"-24" Manifold Inlet Riser (HP Storm Manifolds Fittings Manual)
Filename:
12"-24" Manifold Inlet Riser (HP Storm Manifolds Fittings Manual).pdf

This document is the 12”-24” Manifold Inlet Riser (HP Storm Manifolds Fittings Manual). Table with pipe size and diagram with descriptions included.

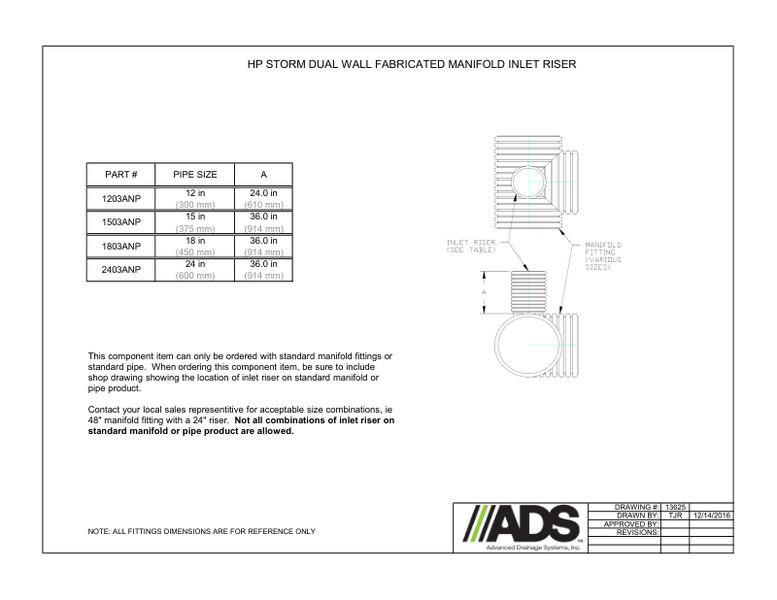

The HP Storm Dual Wall Fabricated Manifold Inlet Riser is shown with a chart that lists the values for Part number, pipe size and A. A diagram showing the Inlet Riser and Manifold fitting (various sizes) provided.
This component item can only be ordered with standard manifold fittings or standard pipe. When ordering this component item, be sure to include shop drawing showing the location of stub on standard manifold or pipe product.
Contact your local sales representative for acceptable size combinations, ie 48" manifold fitting with a 24" stub. Not all combinations of stub on standard manifold or pipe product are allowed.
