This document is the Inline Drain with Bronze Grate Quick Spec Installation Nyloplast Detail. It shows the 8”–15” nyloplast inline drain with Bronze grate and descriptions.

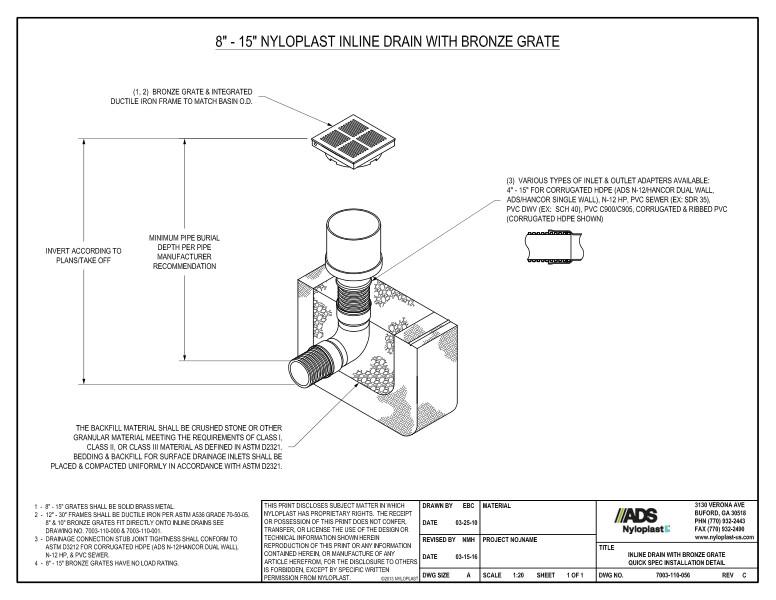

The illustration shows the bronze grate and integrated ductile to match basin, minimum pipe burial, inverts, various types of inlet/outlet adapters and backfill material made from crushed stone or other granular material.
Note 1 states that grates shall be solid brass metal. Note 2 states that frames shall be ductile iron per ASTM A536 grade 70-50-05. Note 3 explains that drainage connection stub joint tightness shall conform to ASTM D3212 for corrugated HDPE, N-12 HP & PVC sewer. Note 4 states that bronze grates have no load rating.
