10 in Inline Drain Design Details

10 in Inline Drain Design Details.pdf

10 in Inline Drain Design Details

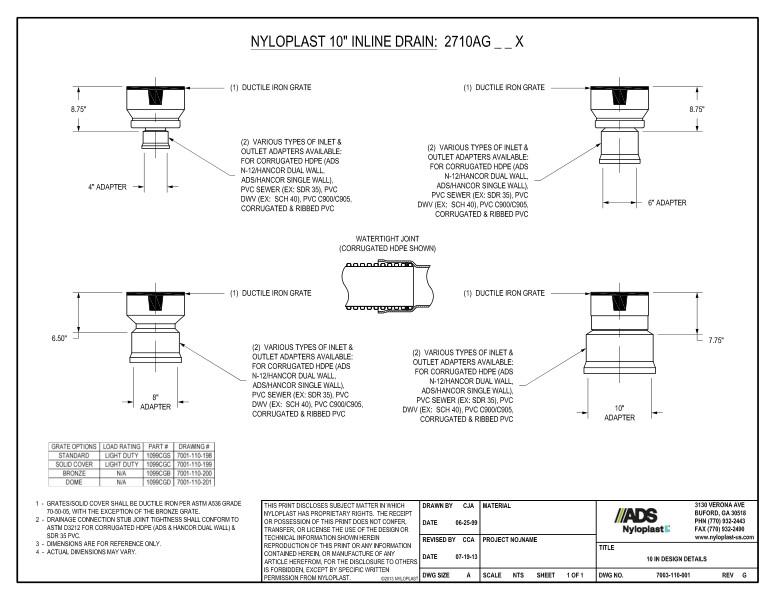

This document is the 10” Inline Drain Design Details. It shows various nyloplast inline drains, adapters and descriptions.

The illustrations show the ductile iron grate, various types of inlet/outlet adapters for drains with 4”, 6”, 8” and 10” adapters. A corrugated HDPE watertight joint is included.

A chart lists grate options, load rating, part & drawing number.

Note 1 states that grates/solid covers shall be ductile iron per ASTM A536 grade 70-50-05. Note 2 explains that drainage connection stub joint tightness shall conform to ASTM D3212 for corrugated HDPE. Notes 3 and 4 state that dimensions are for reference only and in inches.
