205F 30-60 SaniTite HP Booted (Cored or Cast Hole) Structure Connection Detail

Filename:
205F 30-60 SaniTite HP Booted (Cored or Cast Hole) Structure Connection Detail.pdf

Download Document (pdf) View in Browser
205F 30-60 SaniTite HP Booted (Cored or Cast Hole) Structure Connection Detail

This document is the 205F 30-60 SaniTite HP Booted (Cored or Cast Hole) Structure Connection Detail. Diagram and chart provided.

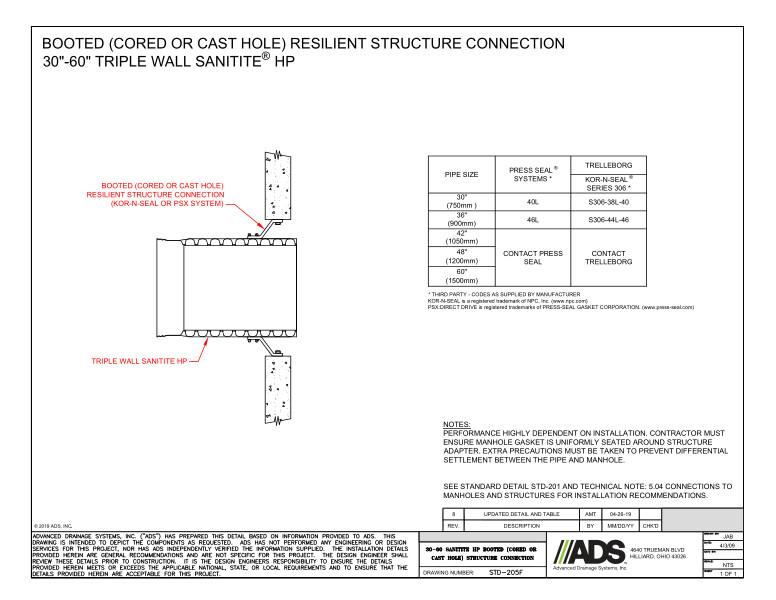

The diagram shows the Booted (Cored or Cast Hole) Resilient Structure Connection (Kor-N-Seal or PSX System) and triple wall SaniTite HP.

A chart provides values for pipe size, Press Seal systems, Trelleborg with Kor-N-Seal 306.

Notes state that performance is highly dependent on installation. Manhole gasket must be uniformly seated around structure adapter. Take precautions to prevent differential settlement between the pipe and manhole.

205F 30-60 SaniTite HP Booted (Cored or Cast Hole) Structure Connection Detail
