4 x 4 N-12 Dual Wall Tee with Gasketed SWR Bell Nyloplast Detail
Filename:
4 x 4 N-12 Dual Wall Tee with Gasketed SWR Bell Nyloplast Detail.dwg
![4 x 4 N-12 Dual Wall Tee with Gasketed SWR Bell Nyloplast Detail](https://assets.adspipe.com/m/631e342559943de6/webimage-4-x-4-N-12-Dual-Wall-Tee-with-Gasketed-SWR-Bell-Nyloplast-Detail.jpg)

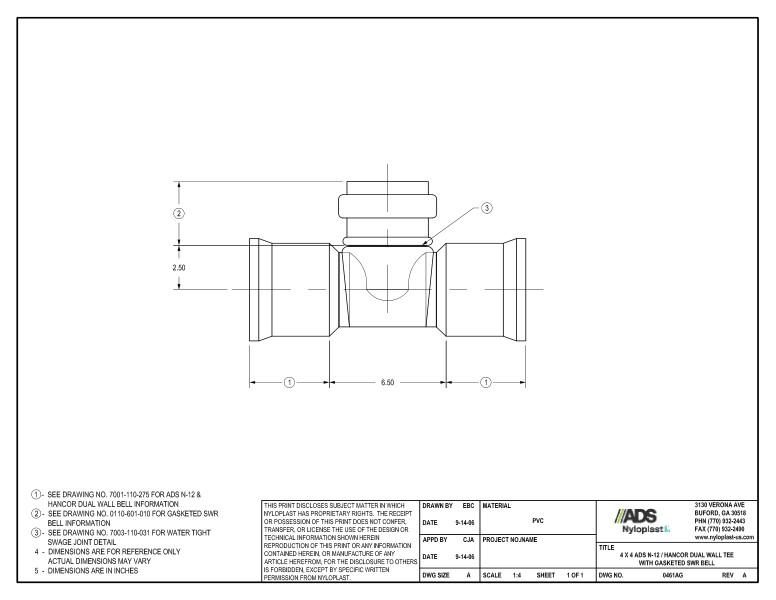

This document is the 4 x 4 N-12 Dual Wall Tee with Gasketed SWR Bell Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references Hancor Dual Wall Bell for more information. A note on dimension 2 references Gasketed SWR Bell for more information. Note 3 directs to see drawing for water tight SWAGE joint detail. Note 4 states that dimensions are for reference only. Note 5 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
