StormGrid NXSWT 100 Geogrid Specification

Filename:
StormGrid NXSWT 100 Geogrid Specification .pdf

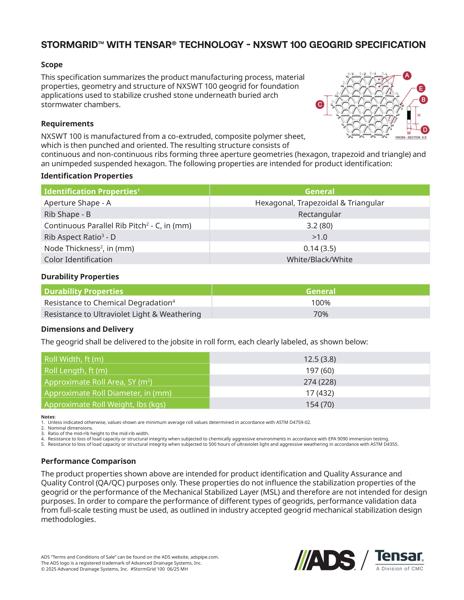

StormGrid NXSWT 100 Geogrid Specification

This document is the StormGrid NXSWT 100 Geogrid Specification. Scope, requirements, properties, dimensions and delivery listed.

This specification summarizes the product manufacturing process, material properties, geometry and structure of NXSWT 100 geogrid for foundation applications used to stabilize crush stone underneath buried arch stormwater chambers.

NXSWT 100 is manufactured from a co-extruded, composite polymer sheet, which is then punched and oriented. The resulting structure consists of continuous and non-continuous ribs forming three aperture geometries (hexagon, trapezoid and triangle) and an unimpeded suspended hexagon.

The identification properties chart lists general information for aperture, rib shape, parallel, aspect ratio, node thickness and color. Durability properties show resistance to chemical degradation, ultraviolet light and weathering.

The dimension and delivery chart lists dimensions for W x L roll, area, weight, diameter and weight per roll.
