42" x 12" - 42" x 18" Fabricated Reducing Wyes (HDPE Dual Wall Fabricated Wyes)
Filename:
42" x 12" - 42" x 18" Fabricated Reducing Wyes (HDPE Dual Wall Fabricated Wyes).pdf
![42" x 12" - 42" x 18" Fabricated Reducing Wyes (HDPE Dual Wall Fabricated Wyes)](https://assets.adspipe.com/m/6f0dbed99deaf9d5/webimage-42-x-12-42-x-18-Fabricated-Reducing-Wyes-HDPE-Dual-Wall-Fabricated-Wyes.jpg)
This document is the 42" x 12" - 42" x 18" Fabricated Reducing Wyes (HDPE Dual Wall Fabricated Wyes). Diagrams with table provided.

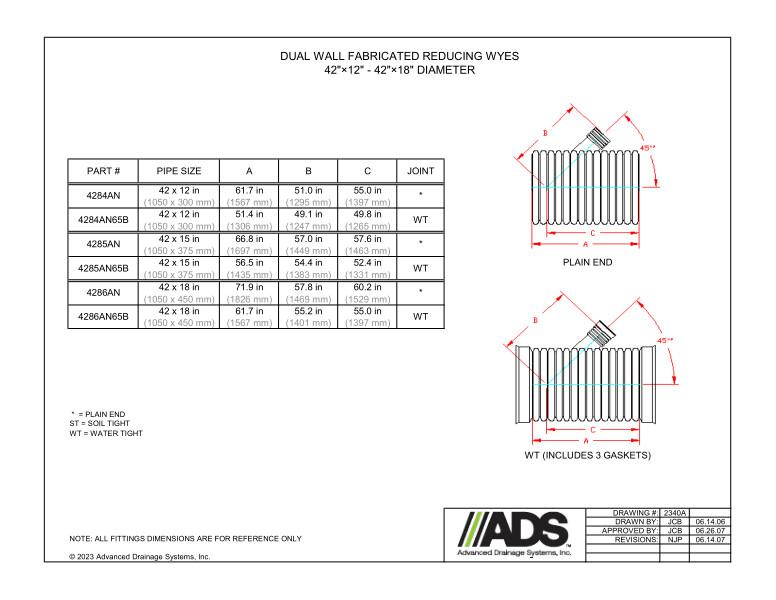

The diagram of the Dual Wall Fabricated Reducing Wyes 42" x 12" - 42" x 18" diameter shows the Plain End Wye with A/B/C dimensions and 45 degree arc. The WT (includes 3 gaskets) Wye is shown with A/B/C dimensions and 45 degree arc.
A table with part number, pipe size and A/B/C/Joint dimensions is provided.
All fittings dimensions are for reference only.
