209 Connection Drop Manhole 30-60in SaniTite HP Detail

Filename:
209 Connection Drop Manhole 30-60in SaniTite HP Detail.pdf

Download Document (pdf) View in Browser
209 Connection Drop Manhole 30-60in SaniTite HP Detail

This document is the 209 Connection Drop Manhole 30-60in SaniTite HP Detail. A diagram with unit descriptions provided.

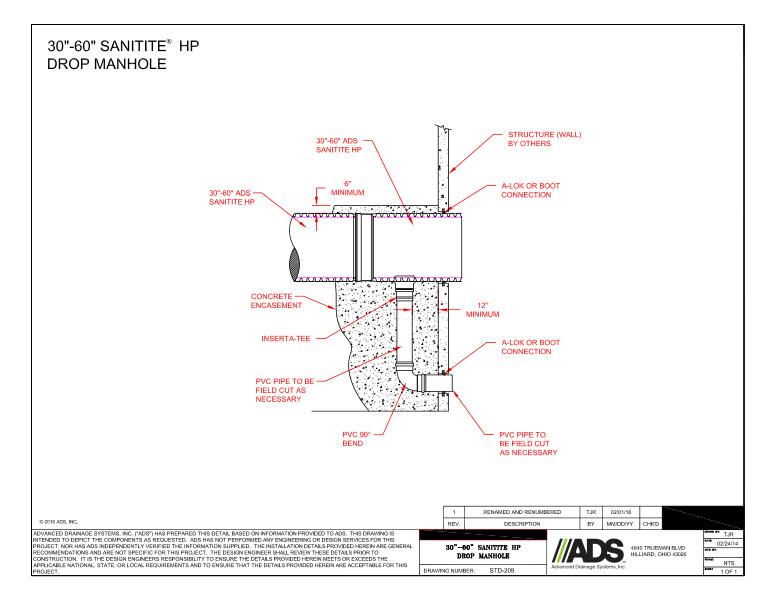

The manhole diagram shows the PVC pipe to be field cut, 30-60in ADS SaniTite HP, concrete encasement, Inserta Tee, structure wall, A-LOK or boot connection and PVC 90 degree bend.

209 Connection Drop Manhole 30-60in SaniTite HP Detail
